ZOOM ROOMS CUSTOM BUILT TO YOUR NEEDS




Phone Room

Room Size: 1-2 people

For smaller spaces such as phone booth, focus room or an Executive office. You can use the room to make a phone call, as a touch whiteboard, share content or to join/start a video meeting.

This setup leverages a single All-in-One PC with touch display, integrated PC, microphone, speaker, HD camera along with Zoom Rooms for Touch application. A Zoom Rooms Controller such as an iPad or Android device is optional as the controller interface is displayed on the Touch display.

Equipment List:

All In One PC Options:

  • Dell Optiplex AIO 7760 27" Touch

  • Dell Optiplex AIO 7450 24" Touch

External Microphone (Optional):

  • MXL AC-404-Z USB Boundary Microphone



Mobile Cart

Room Size: 2-5 people

The Mobile Cart is equipped with a digital whiteboard. You can start a whiteboard session, annotate and then invite others on desktop or mobile to view or co-annotate. You can save the whiteboard image and annotations at any time by sending the image file to email recipients you specify.

You have the option (in addition to touch control) of an iPad at the table to be used as a room controller along with another optional iPad at the door as the room scheduling display.

Equipment List:

Cart System:

  • Dten D7 55" All in One Board

  • Heckler AV Cart

Controller & Accessories (Optional):

  • iPad 9.7" Wifi Only 32GB - Space Gray

  • Heckler Design Zoom Console (Black Grey) +PoE & Data Adapter

Room Scheduler (Optional):

  • iPad 9.7" Wifi Only 32GB - Space Gray

  • iPad Door Mount - Tilting - Black

  • iPad Door Mount PoE Adapter

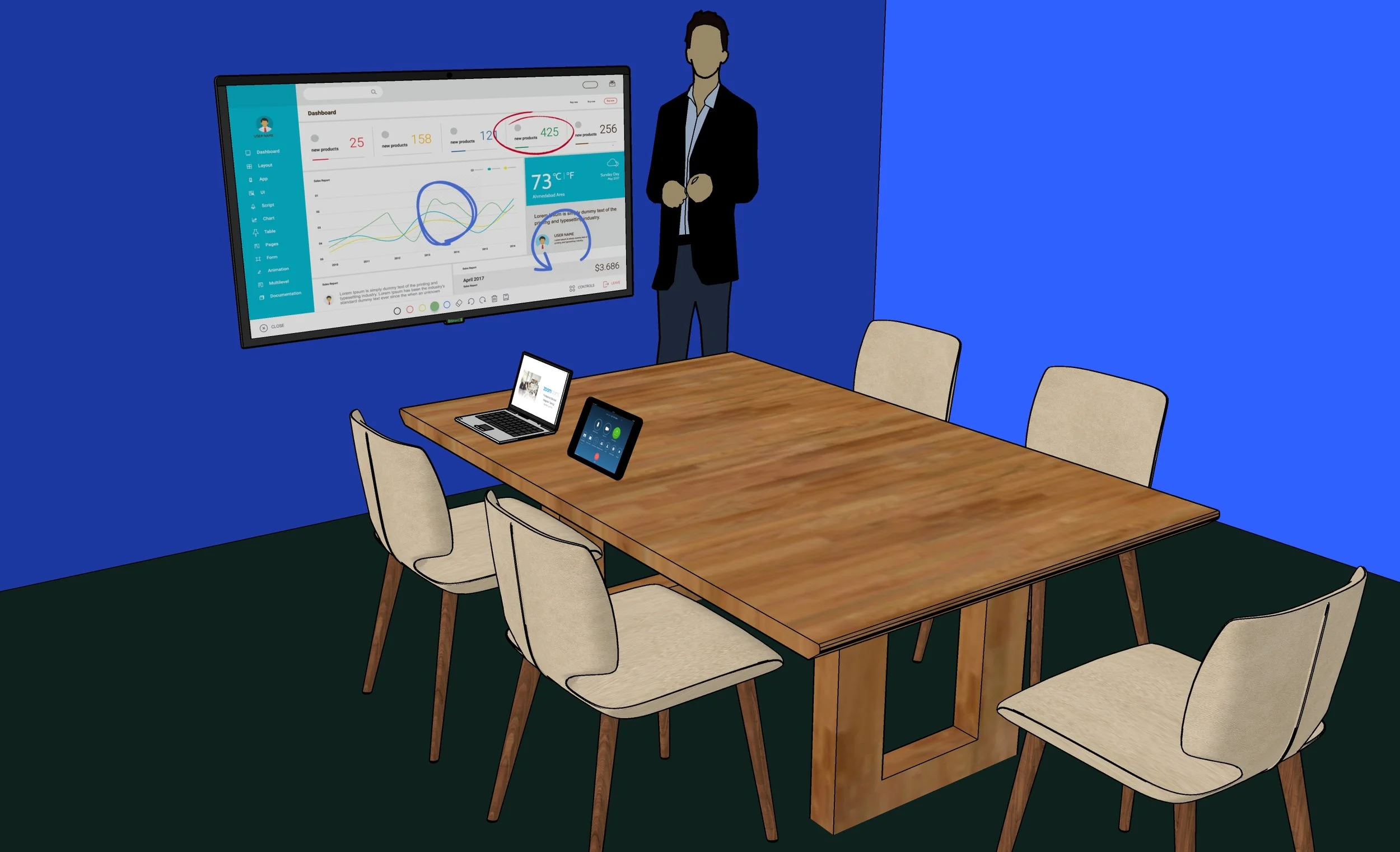

Zoom Rooms Collaboration (2-7 People).jpg

Collaboration Room

Room Size: 2-7 people

The Collaboration Room is equipped with a digital whiteboard. You can start a whiteboard session, annotate and then invite others on desktop or mobile to view or co-annotate. You can save the whiteboard image and annotations at any time by sending the image file to email recipients you specify.

This setup leverages a touch display, integrated PC, microphone, speaker, HD camera along with Zoom Rooms for Touch application. A Zoom Rooms Controller such as an iPad or Android device is optional as the controller interface is displayed on the Touch display.

You have the option (in addition to display touch control) of an iPad at the table to be used as a room controller along with another optional iPad at the door as the room scheduling display.

Equipment List:

All in One:

  • Dten D7 55" All in One Board

Controller & Accessories (Optional):

  • iPad 9.7" Wifi Only 32GB - Space Gray

  • Heckler Design Zoom Console + PoE & Data Adapter

Room Scheduler (Optional):

  • iPad 9.7" Wifi Only 32GB - Space Gray

  • iPad Door Mount - Tilting - Black

  • iPad Door Mount PoE Adapter


Zoom Rooms Huddle (2-7 People).jpg

Huddle Room

Room Size: 2-7 people

For a huddle room sitting 2-7 people we recommend 1 TV display, an integrated camera, microphone and speaker device such as the Aver VB342, which connects to the Zoom Rooms computer. All equipment is wall-mounted behind the display allowing for easy access and installation.

An iPad at the table is used as a room controller along with another optional iPad at the door as the room scheduling display.

Equipment list:

Camera and Audio:

  • Aver VB-342 Camera/Speaker/Microphone

Computer:

  • Custom Built 7th Gen Intel NUC

Controller & Accessories:

  • iPad 9.7" Wifi Only 32GB - Space Gray

  • Heckler Design Zoom Console (Black Grey) +PoE & Data Adapter

Room Scheduler (Optional):

  • iPad 9.7" Wifi Only 32GB - Space Gray

  • iPad Door Mount - Tilting - Black

  • iPad Door Mount PoE Adapter


Zoom Rooms Professional AV Designs

As a Zoom Certified Integrator, we can supply & install larger professionally design rooms. Contact us and receive a free assessment of your specific needs. Zoom Rooms Pro AV options include:

  • ProAV Conference (7-13 People w/table mics)

  • ProAV Conference (9-19 People w/ceiling mics)

  • ProAV 3-Screen (6-10 people w/speaker tracking camera)

  • ProAV All Hands Space (w/ presenter mics only)

  • ProAV Training Room/Classroom (w/ ceiling & presenter mics)

  • ProAV Divisible Space (w/ ceiling & presenter mics)

Additional Zoom Rooms Designs

  • Scheduler

  • Digital Signage / Screen Share Only

  • H.323/SIP Room Systems Conversion

  • Broadcast Using a Zoom Room

We also offer vendor specific Zoom Rooms which are built around a single vendor for a variety of room types and are suited for corporations looking to standardise on a vendor for global consistency.

Crestron

  • Huddle (2-7 People)

  • Conference (7-13 People)

Logitech

  • Huddle (2-7 People)

  • Conference (7-13 People)

  • Large Conference (9-19 People)

Polycom

  • Huddle (2-7 People)

  • Conference (7-13 People)

DTEN

  • Collaboration (2-7 People)
